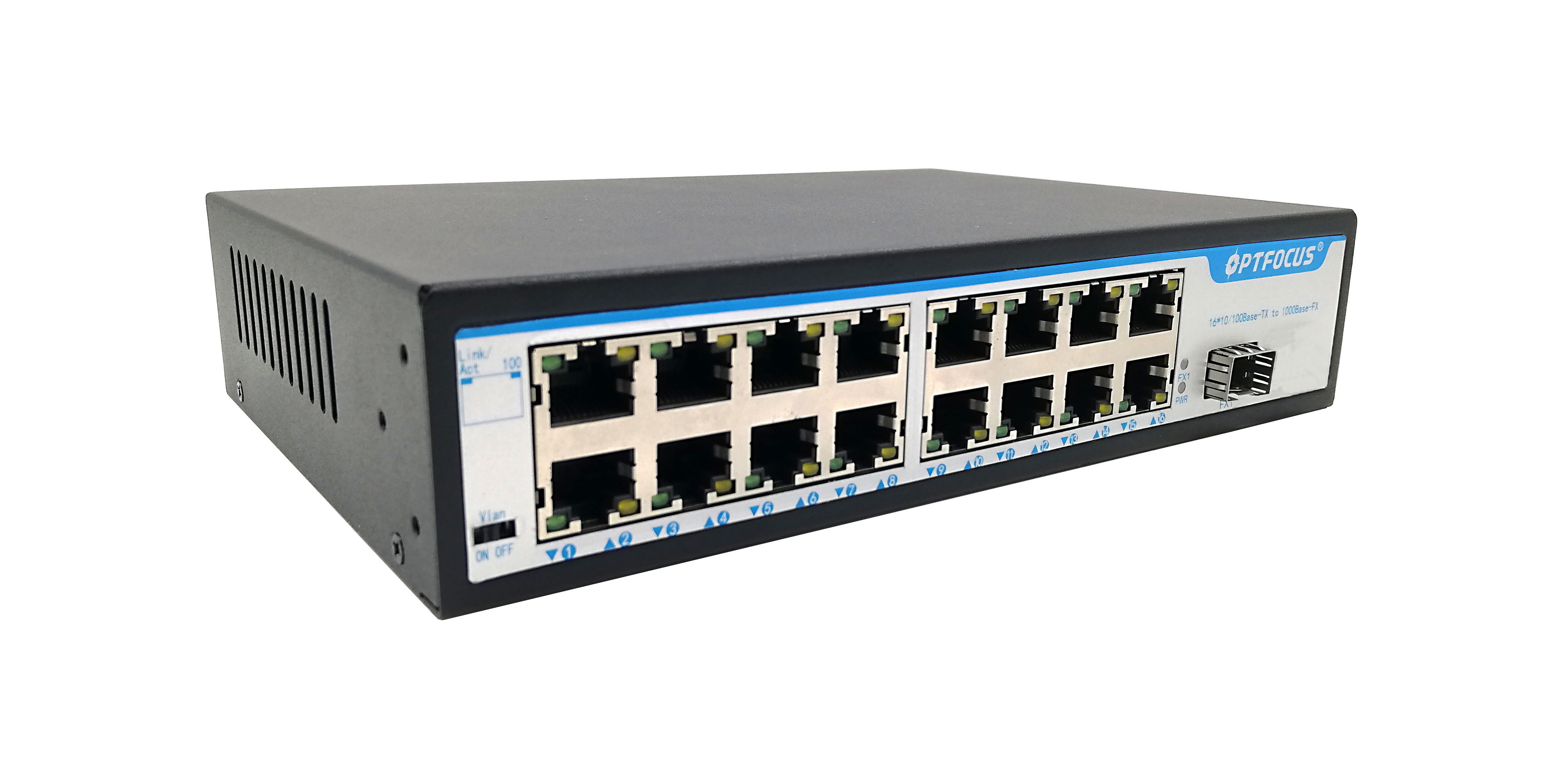

Multi ports 1000Base-X Fiber Optic Switch 10 / 100M 16TX + 1*1000M FX
OFS-GSF1DT16-20 series is a Layer 2 + Optical Ethernet switch with 1*1000Mbps Optical fiber ports and 16*10/100Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.
OFS-GSF1DT16-20’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission. for connecting with devices like computer, switch, hub, server, etc.
Feature:
* 16 Port 10/100Mbps with Auto Uplink™ , 1 port 1000Mbps Fiber port.
* Automatic MAC address learning and aging
* 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
* LED indicators for monitoring power/link/activity
* Supports10/100Mbps-Full/Half-duplex
* Supports Wall-mount and DIN-Rail installation ,Optional.
* Supports Broadcast Storm Control
* Excellent heat elimination without cooling fan.
* Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
* Harsh environment or higher requirement
* Redundant dual DC power inputs
* -10℃-55℃operating temperature range.
Technical Specifications:
| Product Name | 16-port 10/100Mbps + 1-port 100Mbps Fiber |
| Product Model | OFS-GSF1DT16-20 |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Fiber Media | Multi-mode: 2KM Single-mode: 20/40/60/80/100KM Fiber port :SC/ST/FC Optional |
| Performance Specification | Bandwidth: 5Gbps
Packet Buffer Memory:1M
Packet Forwarding Rate:148800pps/port
MAC Address Table:4K |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR; Link; ; Link/Act |
| Input voltage range | DC5~15V |
| Power Supply external PS | Input: AC100 ～ 250V, Output:DC5V 2A； |
| Max power | 8W |
| Environment temperature | 0 ～ +55℃ |
| Storage temperature | -20 ～ +70℃ |
| Humidity | 5% ～ 90% |
Ordering Information:
| Model | Product Description |
| OFS-GSF1DT16-20 | 16* 10/100Base-T RJ45,1* 1000M fiber ports,SC,double fiber1310nm,20km,external PS |
| OFS-GSF1DT16-xx | 16* 10/100Base-T RJ45,1* 1000M fiber ports,SC,double fiber,.max optical fiber distance from 20 to 120 km, “xx” for the amount of distance,external PS |
| OFS-GSF1DT16A-20 | 16* 10/100Base-T RJ45,1* 1000M fiber ports,SC,Single Fiber 1310nm,20km,external PS |
| OFS-GSF1DT16B-20 | 16* 10/100Base-T RJ45,1* 1000M fiber ports,SC,Single Fiber 1550nm,20km,external PS |
| OFS-GSF1DT16A/B-xx | 16* 10/100Base-T RJ45,1* 1000M fiber ports,Single Fiber ,One set of “A” must be connected with another set of “B” for using.max optical fiber distance from 20 to 120 km, xx for the amount of distance,external PS |
